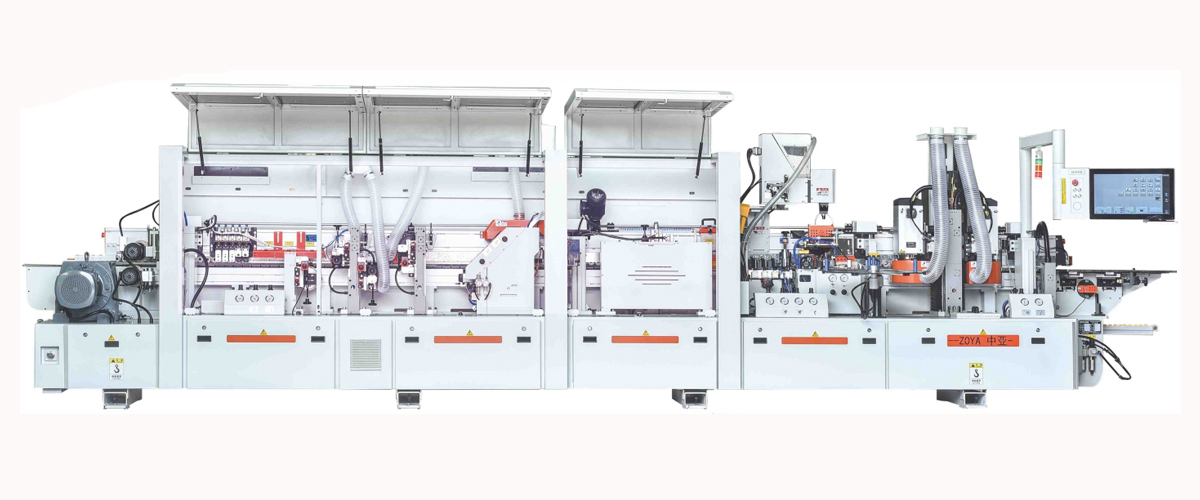

ZY-K1(WH)
ZY-K(WH) IS ONE KIND OF SOFT FROM SPECIAL SHAPE EDGE BANDING MACHINES. IT IS FULL AUTOMATICALLY ABLE TO MAKE HALF ARC SHAPE PROFESSIONALLY.

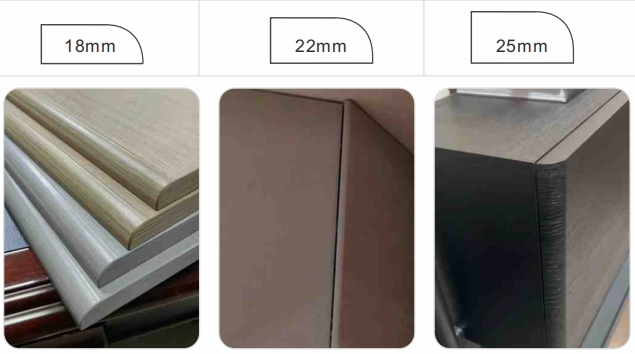

ONE CLICK SWITCH ON THE SCREEN FOR EVERY SHAPE AND PANEL THICKNESS,NO NEED ADJUSTMENT(18/22/25MM):
| HALF ARC SHAPE PROFESSONALLY |
 |
TECHNICAL DATA
| WORKING PRESSURE | 0.6MPa |
| TOTAL POWER | 60KW |
| FEEDING SPEED | 7m/min |
| ELEVATING MOTOR | STANDARD(0.37kw*2sets) |
| TAPE MATERIAL | PVC(J shape pitted surface and better flexibility materials suggested) |
| TAPE THICKNESS | 1mm |
| PANEL THICKNESS | 18/22/25mm |
| MINIMUM PANEL THICKNESS | ≥300×150mm |
| CONTROL MACHINE | 21.5'Capacitive touch panel computer |
| OVERALL SIZE | 8155*1000*2000mm |
